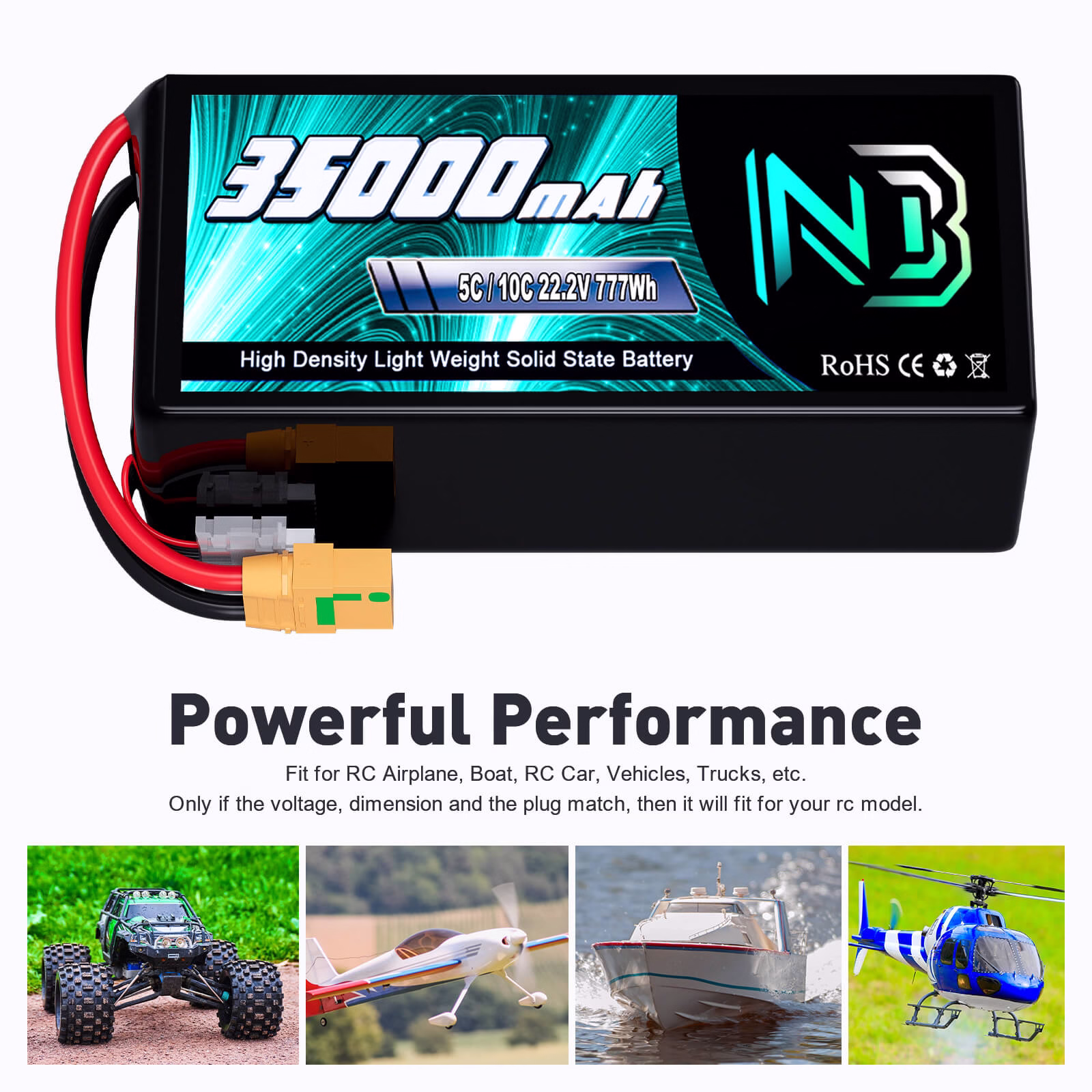

Newbettercell Lipo Battery 6S 35000mah 22 V Solid State Battery for FPV/UAV Drone
Newbettercell 6S 35000mAh 22V solid-state lithium battery is a power supply designed for the high-performance needs of FPV/UAV drones. It uses high-performance LiCoO2 cathode materials and combines advanced liquid-solid hybrid technology to bring excellent energy density and stability. With a capacity of up to 35000mAh, the 6S configuration with a 5C/10C discharge rate can easily cope with high-speed flight or high-load missions. It weighs about 2432g (±10g) and measures 195*87*64.4mm. It achieves the best balance between lightweight and practicality, and is particularly suitable for long-term aerial photography or racing scenes. The battery supports a wide temperature range of -20°C to 60°C, and the cycle life is up to 1000 times, far exceeding the standard of ordinary lithium batteries. A variety of connector options (Deans, EC5, XT60, XT90) ensure wide compatibility.
Newbettercell 6S 35000mAh 22V solid-state lithium battery is designed to meet the high-performance battery requirements of FPV/UAV drones. It uses LiCoO2 material, has a capacity of 35000mAh, 6S configuration, and a 5C/10C discharge rate. It weighs about 2432g, measures 1958764.4mm, supports -20°C to 60°C operation, has a cycle life of 1000 times, is equipped with Deans/EC5/XT60/XT90 connectors, and has passed CE/RoHS/UN38.8/MSDS certification, which is safe and durable.
● High-performance semi-solid lithium-ion battery: Compared with traditional batteries, it has better safety and performance, high energy density, high discharge rate, high safety performance, small size and light weight.
● Longer flight time and cycle life: The energy density of solid-state batteries is as high as 290Wh/kg, which is 30%-35% higher than traditional lithium polymer batteries. The flight time of human-machine will be extended by 20%-35%, and the ultra-long cycle life test exceeds 600 times.
● Safe and reliable: built-in intelligent protection circuit to prevent overcharging and over-discharging, and adapt to extreme environments from -20℃ to 60℃.
● Strong discharge performance: 5C/10C discharge rate, meets high-speed racing needs.
● Wide temperature adaptability (-20~60°C): Maintain stable performance in extreme environments, suitable for complex outdoor tasks.
● Wide compatibility: Adapt to various drone models such as DJI and Yuneec, and flexibly switch connectors such as XT90-S.
● Applicable scenarios: The battery is compatible with RC spraying drones, cargo drones, agricultural drones, industrial multi-rotor aircraft, aerial survey drones, remote control helicopters, drones, multi-rotor aircraft, remote control cars, remote control models, etc.
● Certification: CE/RoHS/UN38.8/MSDS certification, reliable quality.
| Brand Name | Newbettercell |
|---|---|
| Max Load Quantity(cells) | 6 |
| Configuration | 6S |
| Cycle Life | 1000 cycles |
| Model Number | 6S 35000mah |
| Discharge(C) | 5C/10C |
| Application | Agriculture spraying drone/ FPV/Drone/UAV |
| Operating Temperature(℃) | -20°C ~60°C |
| Cathode Materials | LiCoO2 |
| Connector Type | Deans EC5 and XT60 XT90 Plug etc |
| Type | Solid State Battery |
| Capaity | 35000mAh |
| Voltage | 22.2V |
| Size | 195*87*64.4mm(L*W*H) |
| Weight(±10g) | 2432g |
| Warranty | 12Months/one year |
| Certificate | CE/RoHS/UN38.8/MSDS |
| Features | High quality,reliable power |
Newbettercell Lipo Battery Pack Customization and OEM Solutions
Newbettercell is a leading global manufacturer of high-rate discharge lithium polymer (LiPo) batteries with over 10 years of industry experience, focusing on providing high-performance battery solutions for DJI drones, remote control cars and professional-grade equipment. We have passed ISO 9001 certified quality management system, CE, RoHS and UN38.3 international certifications to ensure excellent performance and safety of our products. With advanced technology, automated production lines and multiple protection mechanisms (such as overcharge, over-discharge, short-circuit protection), our batteries can provide stable power even in high-load scenarios and are trusted by customers in more than 50 countries/regions around the world.
We can provide customized battery designs to meet the high standards of drone racing, remote control off-road and industrial applications. Newbettercell provides professional high-discharge (up to 150C) battery customization and OEM solutions to meet your specific application needs. Newbettercell’s modern dust-free workshop and lean production ensure high product consistency and fast delivery. The professional technical team provides full support from selection to maintenance, helping customers achieve excellent performance and reliability, widely used in events and industrial scenarios, and setting industry benchmarks.
And we provide the one step service for Battery cell production, SMT, R&D, Assemble & Produce and Market Sales. Newbettercell is committed to providing first-class pre-sales and after-sales services, equipped with a professional technical support team to provide customers with comprehensive guidance from product selection to use and maintenance, ensuring the best user experience.
Our Advantages
Source Factory Sales
We are a battery factory and sell battery directly without middlemen making a profit, so our prices are more competitive.
Real Battery Capacity
Our batteries are real and enough, with long-lasting performance.
Good Quality Battery
Our battery is lightweight, has high energy density and low internal resistance.
OEM/ODM Service and Sample Service.
ODM/OEM service can meet customers’ various customization needs. Sample service allows customers to understand the quality of our batteries at a lower cost.
